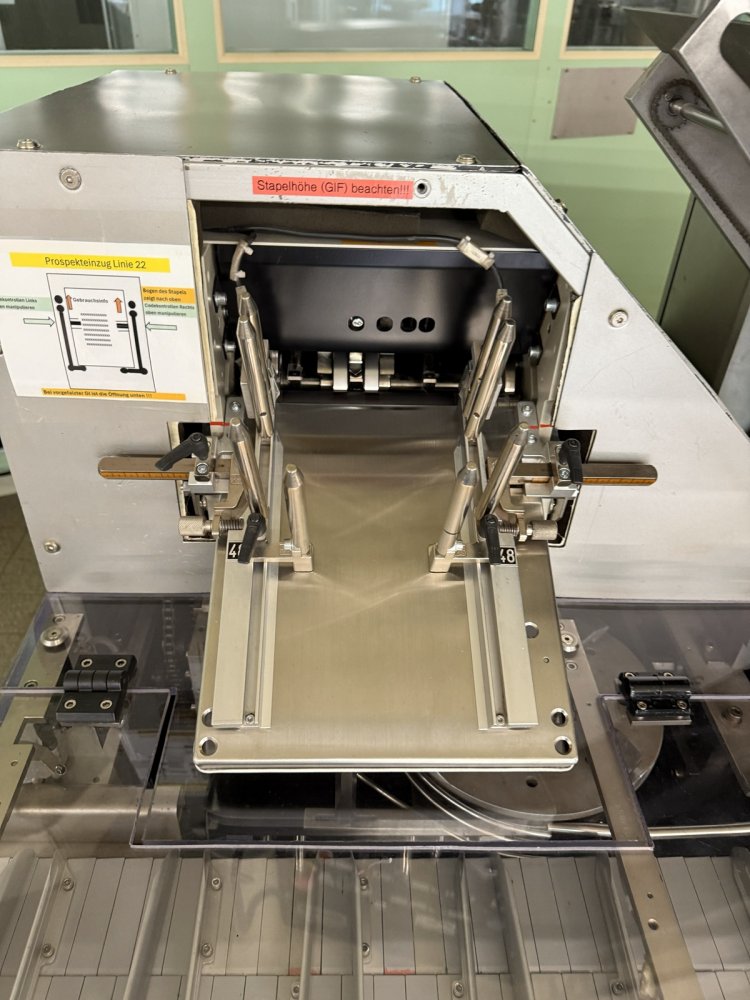

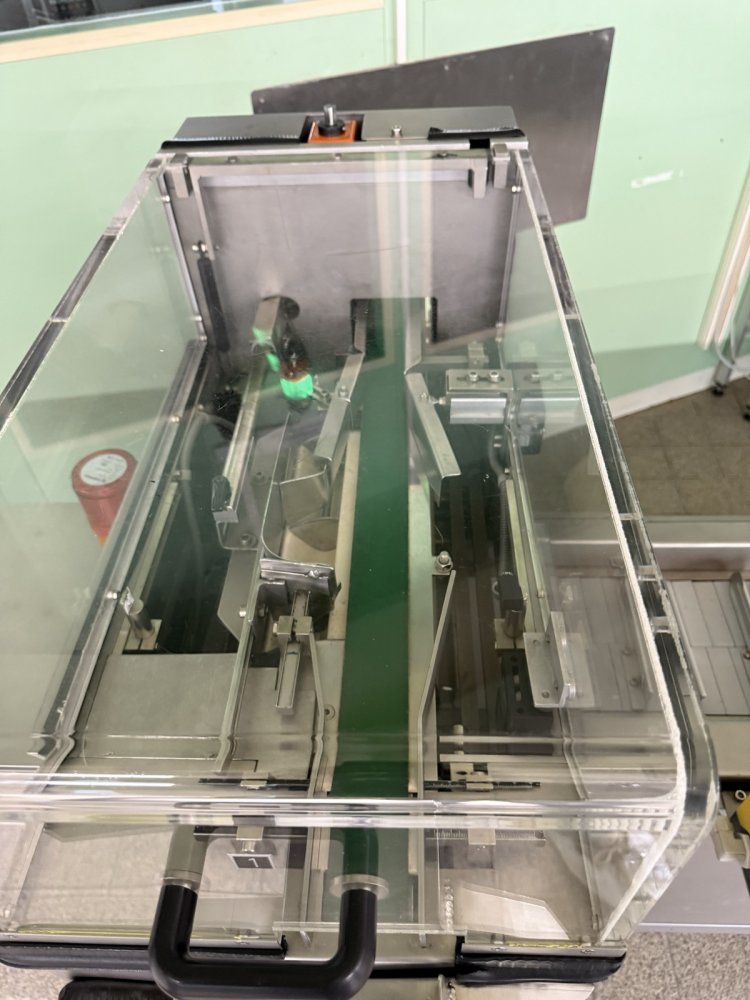

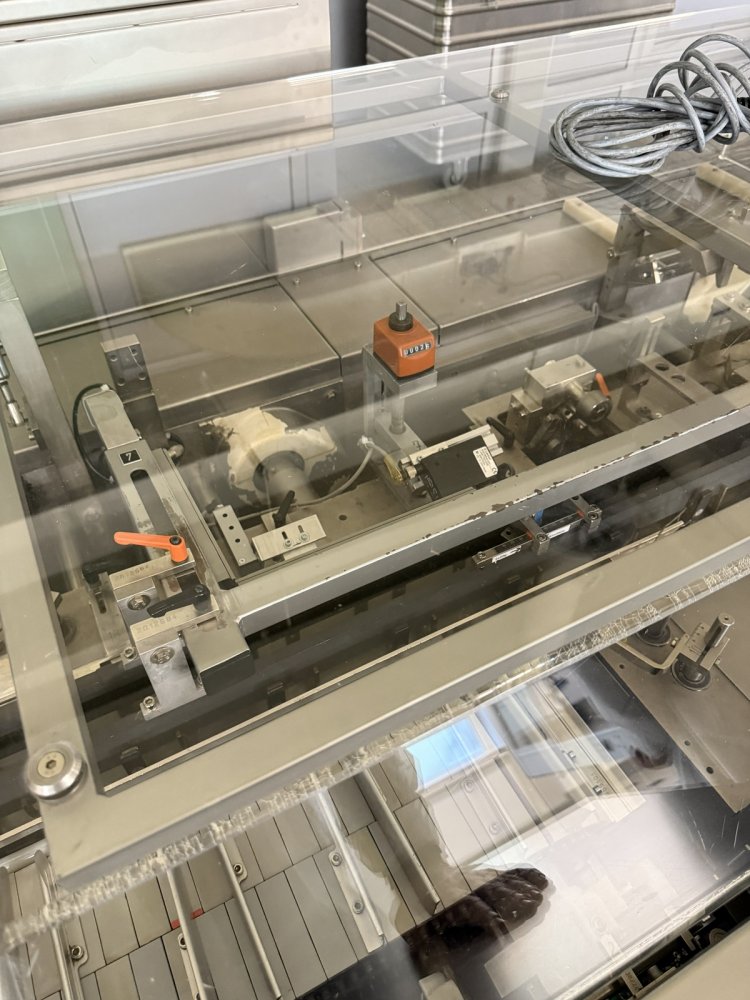

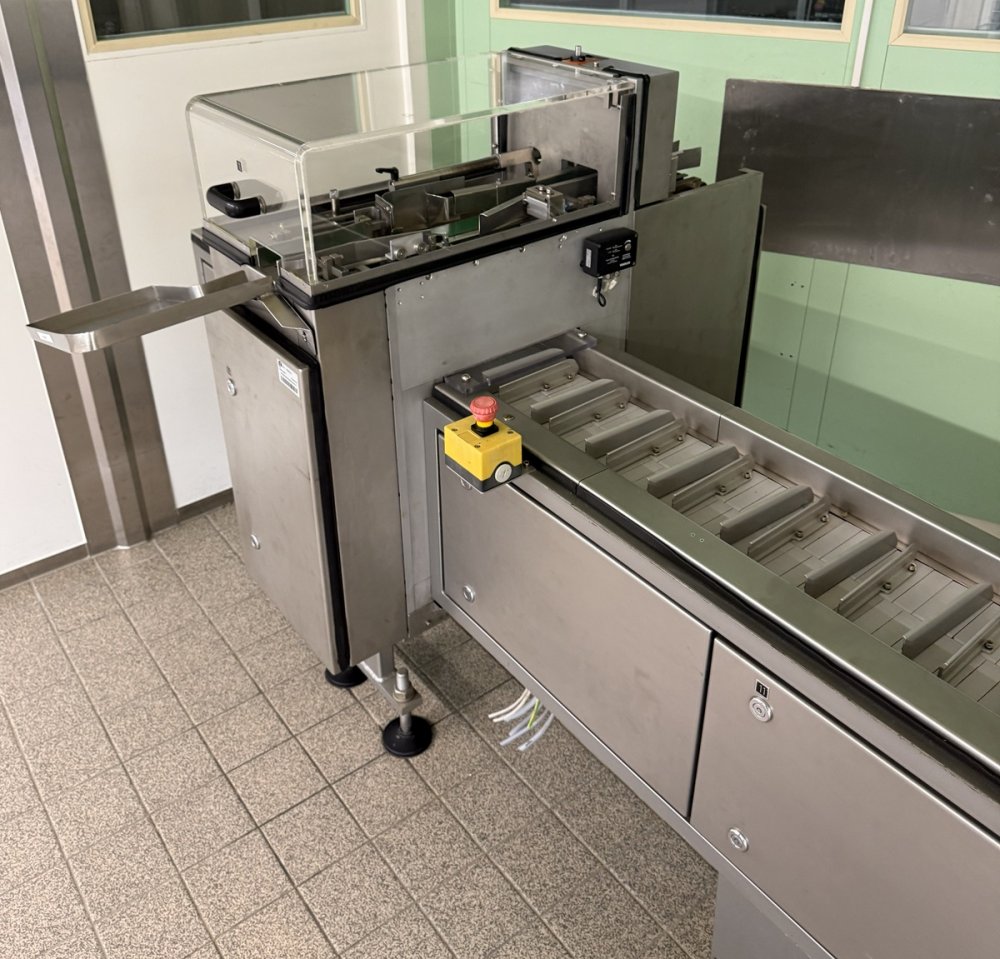

This continuously operating cartoner is designed for packaging tubes while simultaneously feeding leaflets into folding cartons with a maximum output range of approx. 200 boxes/minute (infinitely adjustable).



Format range of the folding cartons to be processed:

Width: min. 20 mm - max. 105 mm

Height: min. 15 mm - max. 70 mm

Length: min. 55 mm - max. 220 mm



The cartoner is equipped with a GUK Cartonac 91 as well as a colour coder and a Laetus Argus 6012 control unit.
