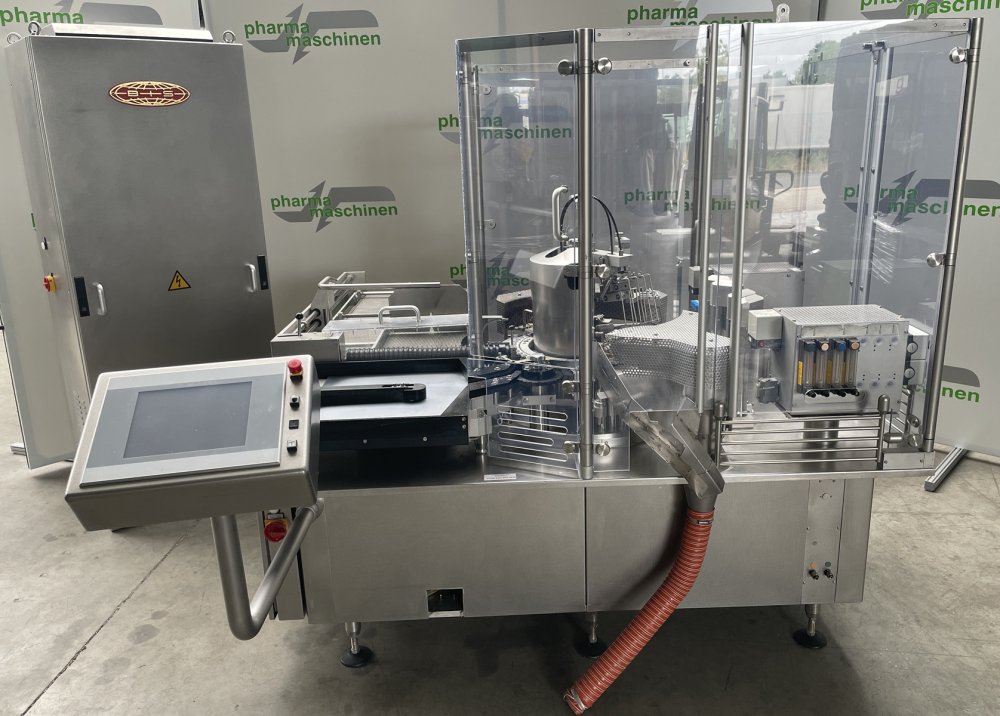

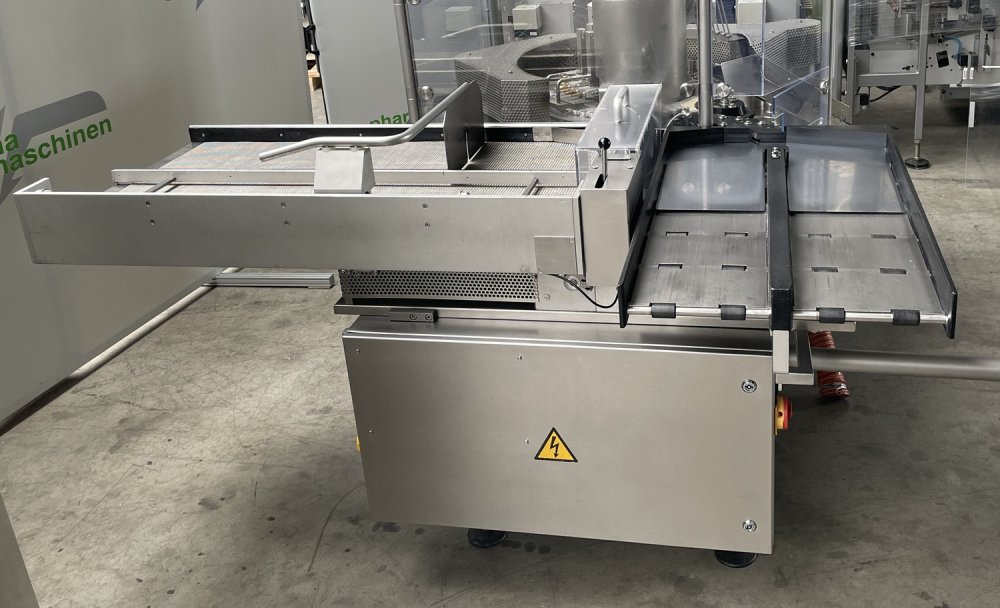

BAUSCH + STRÖBEL AFV 4015 Ampoule Filling-/Closing Machine
Ref: J17369D
BAUSCH + STRÖBEL AFV 4015 Ampoule Filling-/Closing Machine

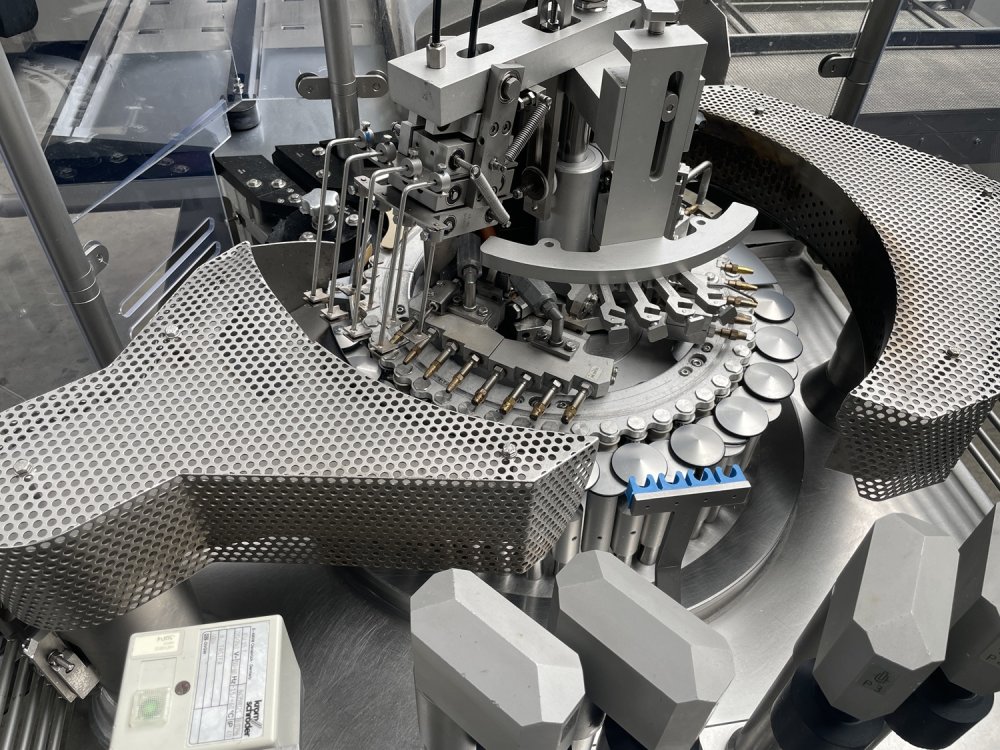

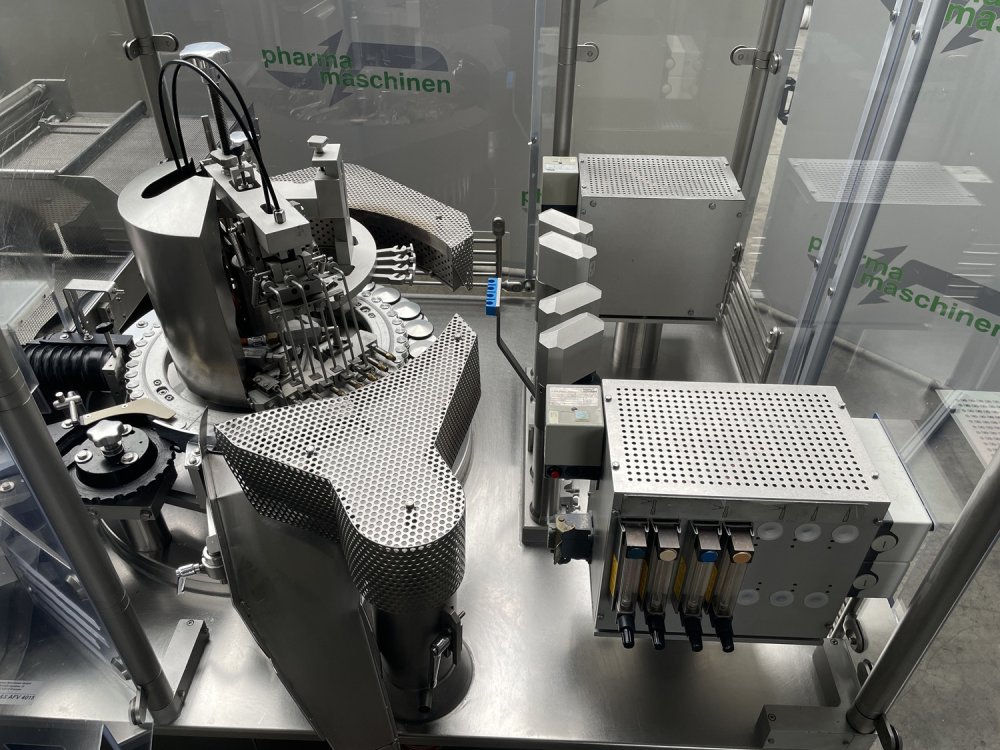

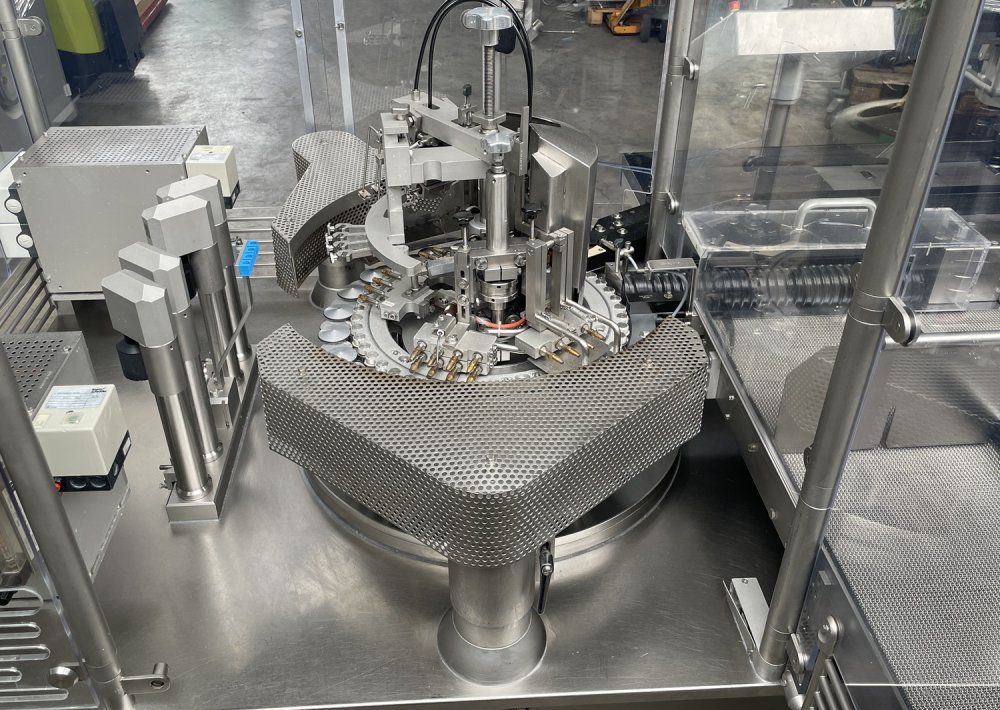

This machine is designed to fill and close Ampoules at speeds up to 12,000 per hour, depending on the volumes filled and the characteristics of the product. If fitted with appropriate formats, the design parameters are as follows:
- Dosing range: 0,25 - 32 ml
- Max. Object Ø: 23 mm
- Max. Object height: 150 mm
- Format parts and stainless steel pump for processing 1 ml ( 10,75 x 70 mm) and 10 ml (17,75 x 110 mm) ampoules
Additional equipment:

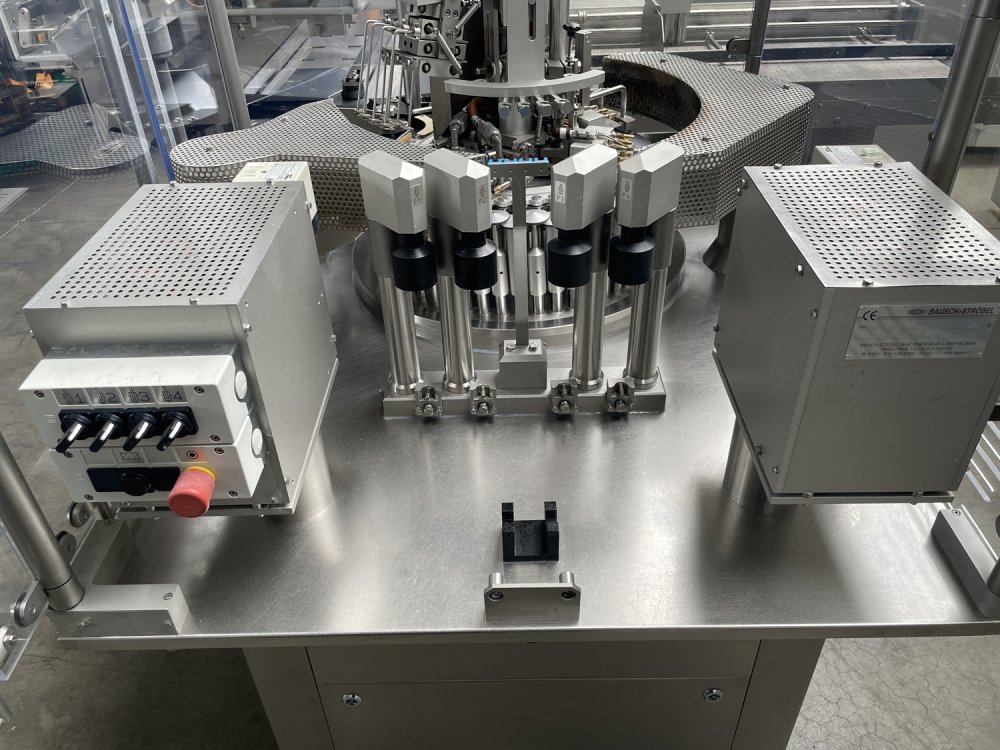

- Preheating station with centering device
- Drip recovery system

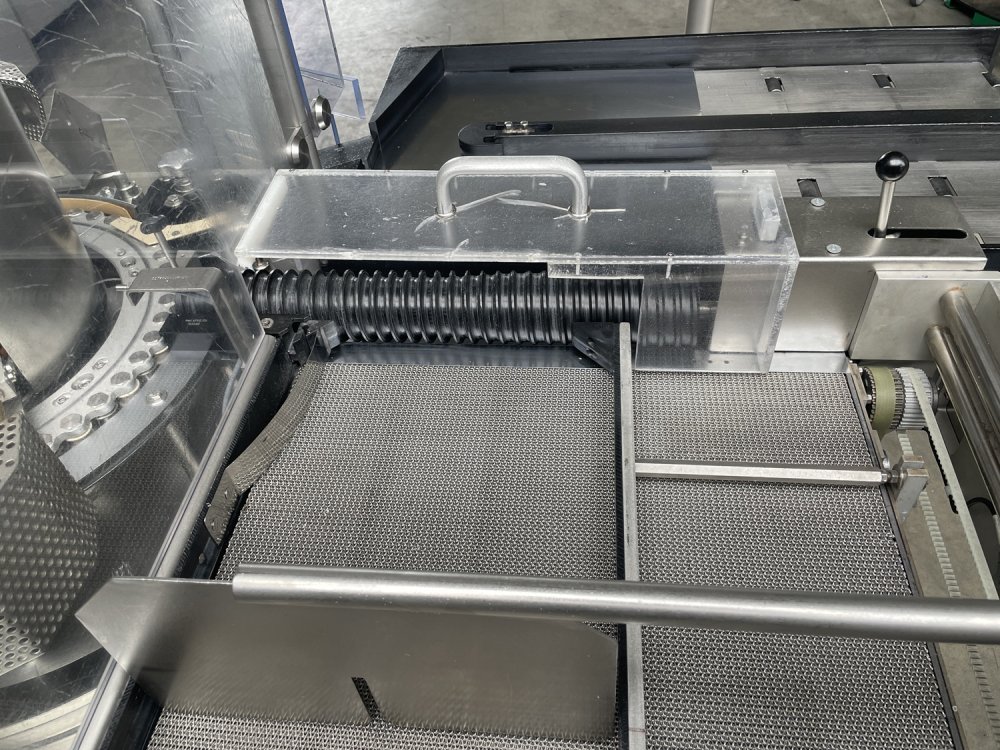

- Outlet storage

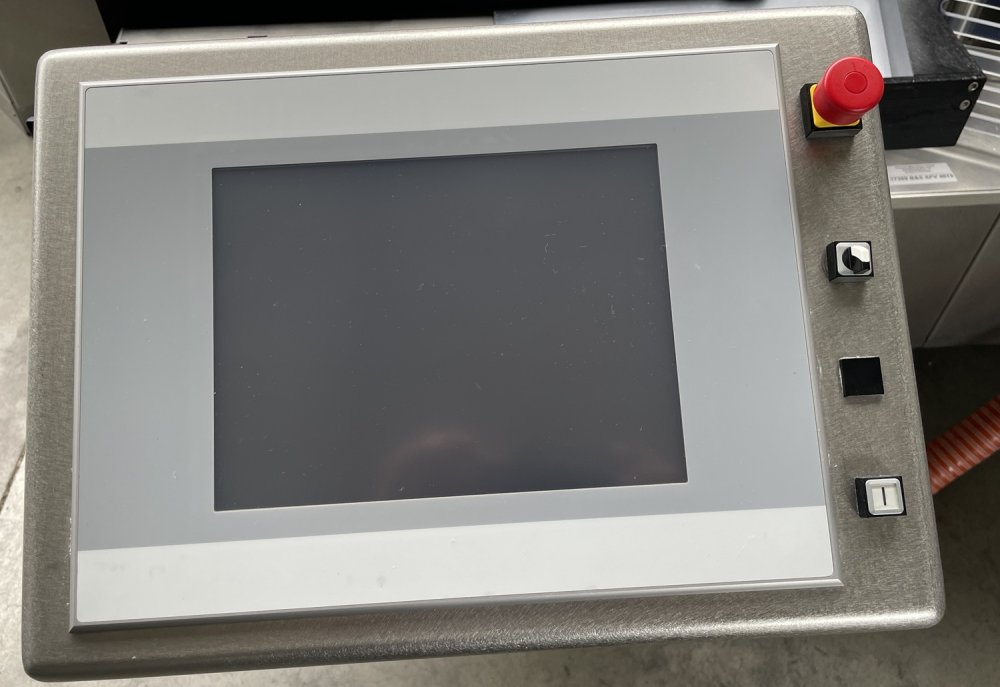

- The operator terminal has already been replaced

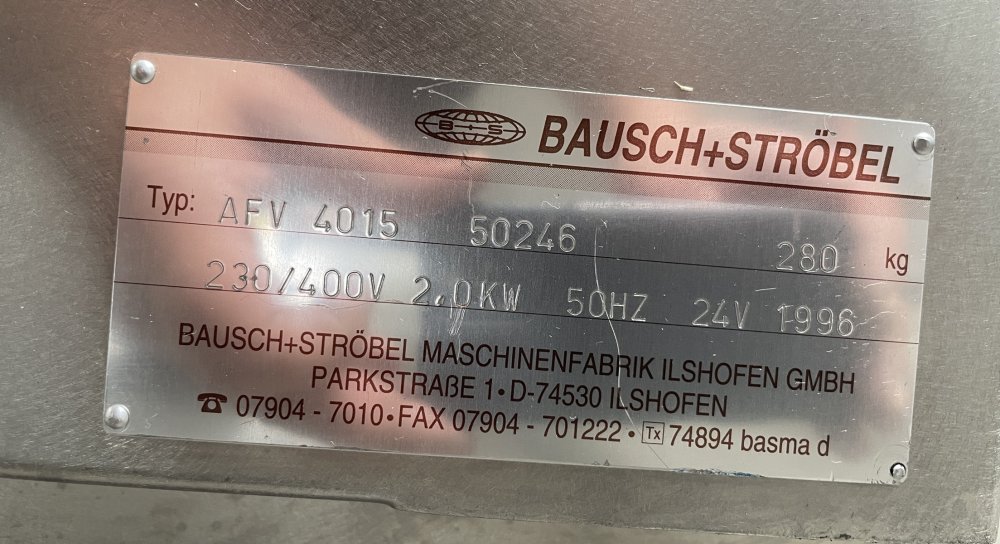

Manufacturer: Bausch+Ströbel
Year of construction: 1996

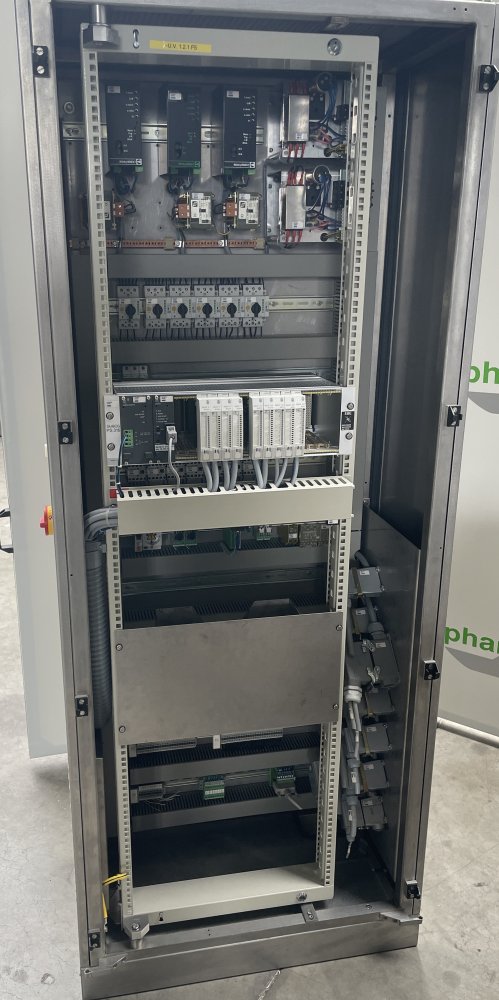

Floor Space: AFV: 220 x 240 x 200 cm, Schaltschrank: 80 x 50 x 200 cm
